1. Basic Principles of Color Reproduction
According to the fundamentals of color science, the perception of color by a normal human visual system is based on the stimulation and reflection of visible light.
Any form of color reproduction aims to make the tristimulus values of the reproduced color X, Y, Zp{X, Y, Z}_pX, Y, Zp equal to those of the original color X, Y, Zo{X, Y, Z}_oX, Y, Zo, that is:
{X,Y,Z}p={X,Y,Z}o\{X, Y, Z\}_p = \{X, Y, Z\}_o{X,Y,Z}p={X,Y,Z}o

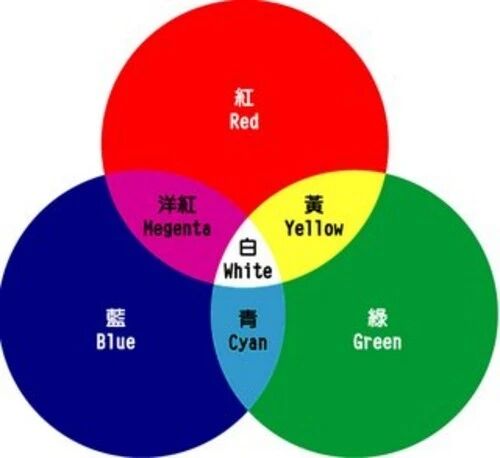

Color sensation is formed by the stimulation of the visual system by the three primary colors of light. Additive color mixing of the three primaries is effective for color reproduction.
In colorimetry, this is simplified as follows:
* Red (R) + Green (G) = Yellow (Y)
* Red (R) + Blue (B) = Magenta (M)
* Green (G) + Blue (B) = Cyan (C)
* Red (R) + Green (G) + Blue (B) = White (W)
The additive color mixing principle serves as the fundamental basis for various color reproduction technologies. LCD displays and color televisions are direct applications of additive RGB color mixing.
In printing, however, the substrate itself does not emit light. Color reproduction relies on illumination from an external light source. For printed color reproduction, the substrate must contain materials that selectively absorb and reflect specific spectral components of incident light, allowing colored light to be reflected into the human eye to achieve color reproduction.
The colorants commonly used in printing with selective spectral absorption and reflection are the three primary process inks: Cyan (C), Magenta (M), and Yellow (Y).
These inks selectively absorb Red, Green, and Blue light respectively, while reflecting combinations of the remaining wavelengths (Green + Blue, Red + Blue, Red + Green).
Based on this, the subtractive color mixing principle defines the color synthesis rules as follows:
* Yellow (Y) + Magenta (M) = White (W) − Blue (B) − Green (G) = Red (R)
* Cyan (C) + Yellow (Y) = White (W) − Blue (B) − Red (R) = Green (G)
* Cyan (C) + Magenta (M) = White (W) − Red (R) − Green (G) = Blue (B)
* Cyan (C) + Magenta (M) + Yellow (Y) = White (W) − Red (R) − Green (G) − Blue (B) = Black (BK)
To a large extent, the quantities of cyan, magenta, and yellow inks determine the amounts of red, green, and blue light reflected from the substrate, thereby indirectly controlling color light to satisfy visual color reproduction.
2. Halftone Overprinting and Color Variation
In printing, inks are applied to white substrates in the form of halftone dots. When the dot area coverage is less than 100%, the overprinted color contains a component of white light reflected from the substrate. This results in reduced color saturation and increased brightness.
By varying halftone dot area coverage or ink film thickness, the amounts of cyan (C), magenta (M), and yellow (Y) inks participating in overprinting change accordingly. This alters the absorption of red (R), green (G), and blue (B) light, enabling the reproduction of a wide range of colors.
3. Four-Color and Spot Color Reproduction
Most color printing reproduction is achieved using CMYK four-color printing.
When higher color accuracy is required or when a specific visual style is desired, spot color reproduction is the most suitable choice.
Spot color reproduction refers to the use of one or more specially mixed inks to reproduce color.
In spot color printing, color reproduction can be achieved by:
* Printing a specific spot ink in designated areas (solid spot printing), or
* Overprinting multiple spot inks to create composite colors.
To further expand the printable color gamut, additional high-saturation inks may be added to the CMYK set, or the ink density of traditional four-color printing may be increased. This approach is known as High-Fidelity Color Reproduction (HiFi Color).
In prepress workflows, four-color, spot color, and HiFi color reproduction each employ different image separation methods, with distinct separation settings and parameters.
Color separation involving more than four colors must carefully address the relationship between CMYK and additional primaries—such as gamut overlap and gray balance—to achieve satisfactory results.
Expanding the printable color gamut and improving color reproduction quality are ongoing goals in the printing industry.
High-quality color reproduction requires not only precise prepress processing and plate making, but also stable and finely controlled output during the printing process.
TIPS
Spot Color
A spot color is a specific color used in printing that is not created by mixing CMYK inks, but instead printed using a dedicated ink. Spot color printing provides superior color accuracy and consistency, making it ideal for brand logos, packaging design, and applications requiring precise color matching.
Characteristics of Spot Colors:
★Accuracy: Each spot color has a fixed hue, ensuring precise color reproduction.
★ Solidity: Spot colors are typically defined as solid colors, regardless of lightness.
★ Wide Color Gamut: The spot color library covers a broader color gamut than RGB, let alone CMYK.
★ Opacity: Spot inks are opaque and capable of solid coverage.
Advantages of Spot Color Printing:
1. Expanded color gamut: Enables reproduction of colors beyond the CMYK gamut.
2. Compensation for process limitations: Full-tone spot printing avoids issues associated with small halftone dots.
3. Improved image detail: Enhances fine graphics and text reproduction.
4. Color consistency: Especially advantageous for long-run printing.
5. Enhanced visual impact: Producesa stronger visual appeal and aesthetics.
Although spot color printing may incur higher costs than CMYK printing, its advantages in color accuracy, consistency, and special visual effects make it a preferred choice for many brands and designers.
HiFi Color
HiFi Color is a color-gamut-expansion technology that achieves broader color coverage by adding additional inks to the traditional CMYK set, resulting in more vivid and vibrant printed colors.
Technical Implementations of HiFi Color:
1. Multi-color printing: Adding inks such as green, orange, or violet to CMYK for high-fidelity reproduction.
2. Custom ink formulation: Using wide-gamut, high-chroma inks or specialized screening methods.
3. XCMYK technology: Expanding gamut through conventional CMYK inks combined with FM screening and dot compensation techniques.
By extending the printable color gamut, HiFi Color technology enables richer and more vivid color reproduction, meeting market demand for high-quality printed products.
