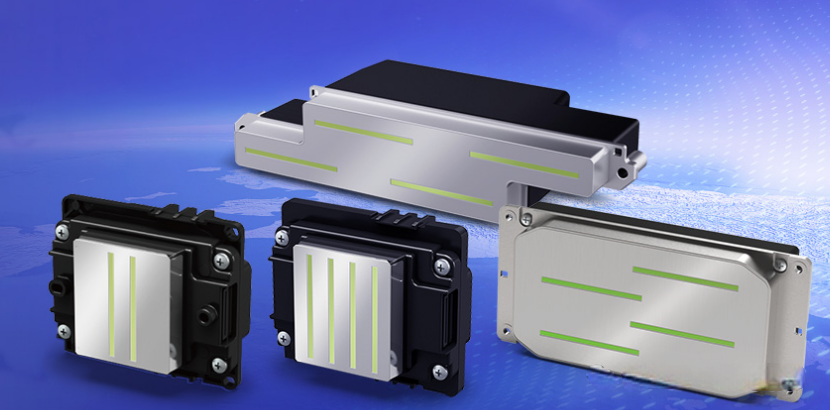

Performance Comparison Between Ricoh and Epson Printhead Technologies

Performance Comparison Between Ricoh and Epson Printhead Technologies

Table of content.

In the UV printing industry, Ricoh and Epson printheads are two of the leading technologies in the market. Both brands, with their unique technological paths and product positioning, have found widespread application across various printing scenarios.

The following is a systematic comparison of the two, covering key aspects such as technical features, print performance, ink compatibility, application areas, and cost-effectiveness.





I. Technical Features Comparison

Ricoh Printhead Key Features:

  1. Utilizes industrial-grade piezoelectric inkjet technology for stable inkjet performance, suitable for various demanding environments.

  2. Features a metal nozzle structure, offering excellent corrosion resistance, and supports high-viscosity and UV-curable inks. Its lifespan typically exceeds 2 years.

  3. Supports variable drop printing (grayscale printing), with typical droplet sizes ranging from 7pl to 21pl, achieving a balance between speed and precision.

  4. High jetting frequency, making it ideal for high-speed industrial printing equipment.

  5. Representative models include Ricoh GEN4, GEN5, GH2220, TH5241, etc.

Epson Printhead Key Features:

  1. Uses micro-piezo technology, offering high droplet control accuracy for fine imaging.

  2. Dense nozzle configuration, capable of achieving resolutions of 1440 dpi or higher, with excellent detail reproduction.

  3. Small droplet sizes, typically ranging from 3.5pl to 10pl, making it especially suitable for high-precision image output.

  4. Lower initial purchase cost, with more competitive overall equipment pricing.

  5. Lifespan: Approximately 1–2 years, with higher maintenance and environmental sensitivity. Less suitable for high-corrosion or high-viscosity inks.

  6. Typical models include Epson DX5, DX7, I3200, S3200, etc.



II. Print Performance and Application

Ricoh Printhead:

With its MEMS (Micro-Electro-Mechanical Systems) manufacturing process, the Ricoh printhead features a robust structure and scientifically arranged nozzles, maintaining consistent output even on high-absorption or uneven substrates.

Its high-speed stability makes it particularly suitable for large-scale industrial production applications such as packaging printing, signage, textile printing, and more.

Epson Printhead:

The Epson printhead is focused on excellent compatibility with UV inks. Some models (such as I3200-U1) are specially optimized, ensuring precise droplet placement and uniform spread for fine image details.

It excels in image-level output and professional artistic applications, performing exceptionally well in small-format, high-precision printing tasks.





III. Ink Compatibility and Adaptability

Ricoh Printhead:

The Ricoh printhead offers excellent ink compatibility, supporting a wide range of ink systems such as water-based, solvent-based, and UV-curable inks, providing users with greater consumable options and versatility for diversified production needs.

Epson Printhead:

Epson printheads are typically recommended for use with original or certified inks. Different models are often optimized for specific ink types to ensure the best balance between print quality and printhead lifespan.





IV. Application Scenario Comparison

Ricoh Printhead:

The Ricoh printhead is primarily designed for industrial-grade applications, with its high speed, stability, and strong corrosion resistance making it the top choice for high-volume production scenarios such as corrugated board printing, label printing, large-format advertising, and industrial signage.

Epson Printhead:

Epson printheads, known for their high cost-performance ratio and excellent imaging quality, are widely used in fields such as photography output, artistic creation, proofing, and small-office applications, covering a wide range of users from general consumers to professional needs.





V. Purchasing Recommendations

When selecting a printhead, users need to consider factors such as ink type, nozzle count, droplet size, printing speed, and equipment budget.

  • For industrial applications requiring high intensity and heavy-duty operation, with a focus on print longevity and stability, the Ricoh printhead is the more suitable choice.

  • For cost-effectiveness and high-resolution output, with applications in smaller-scale or professional creative fields, the Epson printhead offers clear advantages.





VI. Market Positioning Summary

  • Ricoh Printhead: Positioned in the high-end industrial market, renowned for its reliability and durability, serving customers with stringent production efficiency and quality requirements.

  • Epson Printhead: Serves a broader user base, offering mature technology and a wide product line to meet the needs of markets ranging from home users to professional applications.





In summary, neither Ricoh nor Epson printheads can be deemed universally superior. The choice depends on the specific application scenarios and user needs, where both brands complement each other.
