Chemical Structure and Properties of Epoxy Resin Photocuring Systems
Photocuring Technology
Photosensitive curing materials are a class of functional polymers that achieve molecular crosslinking when activated by specific spectral energy. Their key technological carrier—Stereolithography Apparatus (SLA)—utilizes lasers or digital light sources (typically in the ultraviolet range) to trigger precise curing reactions in photosensitive resins and related materials.
The essence of this process is the conversion of photochemical energy into chemical bond energy: liquid or semi-solid organic compounds undergo an irreversible phase transition under photon excitation, forming rigid polymers with three-dimensional network structures.
As an environmentally friendly material processing technology, photocuring has developed rapidly over the past few decades. By using specific wavelengths of light to rapidly convert liquid resin into solid material, it offers significant advantages including:
-
Fast curing speed
-
Low energy consumption
-
No solvent emissions
-
Suitability for continuous production lines
It has been widely applied in coatings, inks, adhesives, and 3D printing.
Evolution and Advantages of Photocuring Technology
In the 1960s, UV curing technology emerged as an environmentally friendly alternative to solvent-based processes, addressing problems such as volatile emissions, high energy consumption, and low curing efficiency associated with traditional thermal curing and air-drying systems.
Although the early concept appeared decades ago, true industrialization did not occur until the 1980s, when breakthroughs in laser precision control enabled its application in automotive molds, aerospace components, and other high-end manufacturing sectors.
Its irreversible curing characteristic—where the material does not melt upon reheating but instead carbonizes—provides excellent dimensional stability. Today, this technology has expanded into advanced fields such as biomedical engineering and precision electronics.
UV Curing Mechanism of Epoxy Resins
Epoxy resin UV-curable materials are substances that solidify under specific wavelength irradiation. Their core structural feature is the presence of epoxy groups (oxirane rings).
These systems are commonly referred to as “cationic systems.” This designation originates from the type of photoinitiator used in the curing process rather than the resin’s intrinsic chemical composition.
The epoxy group consists of a three-membered ring containing two carbon atoms and one oxygen atom. Under suitable conditions, this strained ring undergoes ring-opening polymerization, forming new chemical bonds and enabling crosslinking.
★ Core Principle
Epoxy UV curing systems primarily rely on cationic photopolymerization, which differs fundamentally from the free-radical polymerization mechanism of acrylate systems.
The key lies in the photoinitiator (PI), which, under UV irradiation, generates strong Lewis acids or Brønsted acids that initiate epoxy ring-opening polymerization.

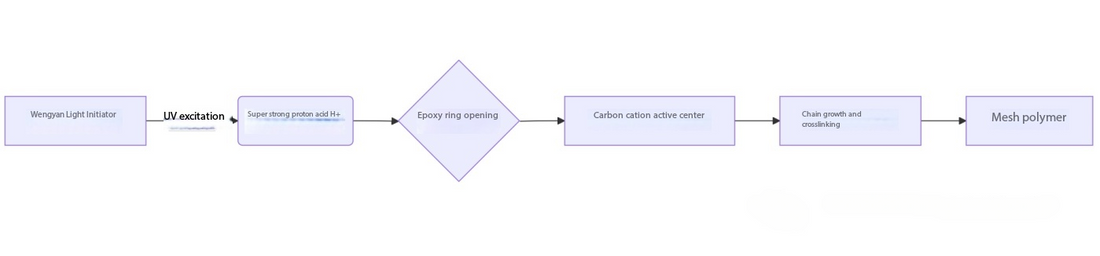

★ Detailed Curing Mechanism
① Photolysis Generates Superacid (HX)
Onium salts (iodonium or sulfonium salts) decompose under UV light, producing strong protonic acids (HX).
② Chain Initiation
The generated superacid protonates the oxygen atom of the epoxy ring, forming an oxonium ion.
③ Chain Propagation
The oxonium ion, highly electrophilic, attacks another epoxy monomer, causing ring opening and generating a longer oxonium ion. This process repeats, leading to molecular chain growth.
④ Chain Termination
Chain termination is less pronounced than in free-radical systems. It mainly occurs through proton transfer to impurities containing active hydrogen (e.g., water, alcohols, amines), resulting in weaker acids and reduced polymerization activity.
⑤ Crosslinking
When multifunctional epoxy resins (containing two or more epoxy groups per molecule) are used, growing chains interconnect to form a three-dimensional network structure. Higher functionality leads to higher crosslink density.
Key Chemical Structures of Epoxy Resins
I. Epoxy Resin
1. Functional Group
Contains epoxy groups (oxirane rings), which are highly strained and reactive under acid catalysis.
2. Common Types
-
Bisphenol A Epoxy Resin (DGEBA)
Most widely used; provides excellent mechanical strength, adhesion, and chemical resistance. -
Bisphenol F Epoxy Resin
Lower viscosity than DGEBA; similar performance, sometimes better flexibility. -
Cycloaliphatic Epoxy Resin
Low viscosity, fast curing, high Tg, low shrinkage, excellent weather resistance, superior electrical insulation.
The primary resin type for high-performance UV epoxy systems. -
Hydrogenated Bisphenol A Epoxy Resin
Improved weather resistance and yellowing resistance. -
Glycidyl Amine Epoxy (e.g., TGMDA)
High functionality, high crosslink density, excellent heat resistance. -
Aliphatic Epoxy Resin
Often used as reactive diluents to reduce viscosity and improve flexibility.
II. Cationic Photoinitiators
1. Function
Absorb UV light and generate strong acids capable of initiating epoxy ring-opening polymerization.
2. Main Types
① Onium Salts (Most Common and Efficient)
-
Iodonium Salts
High efficiency, good thermal stability, widely used. -
Sulfonium Salts
Also generate superacids; some absorb longer wavelengths and produce lower odor. -
Selenonium Salts
Less common.
② Organometallic Compounds (e.g., ferrocene salts)
Less common.
③ Organosilane Systems
Limited applications.
Properties of Epoxy Resin UV Systems
-
Fast curing (seconds under UV exposure)
-
Low-temperature curing
-
Low shrinkage (ring-opening partially offsets polymerization shrinkage)
-
Excellent adhesion
-
High hardness and abrasion resistance
-
Excellent chemical resistance
-
Superior electrical insulation
-
Dark cure (post-curing continues after light removal)
-
Oxygen insensitivity
-
Low odor and low VOC
-
Excellent weather resistance (cycloaliphatic systems)
-
Broad viscosity range
Potential Disadvantages / Challenges
-
Moisture sensitivity
Water acts as a chain transfer agent and reduces curing efficiency. -
High photoinitiator cost
-
Photoinitiator residue concerns
Residual anions may decompose under extreme conditions. -
Limited curing depth
Light penetration is restricted; thick sections may require staged curing. -
Resin selection constraints
Not all epoxy resins are suitable for photocuring; cycloaliphatic epoxies are preferred.
This comprehensive analysis highlights the structural foundation, curing mechanism, performance advantages, and limitations of epoxy UV curing systems, providing a complete technical understanding of their chemistry and industrial applications.
