Core Differences Between 385nm and 405nm Light Sources in UV Curing Printing

Specific Meaning of 385nm and 405nm in Photocuring:

• Emission Peak of the Light Source:
  385nm and 405nm refer to the primary (peak) wavelengths emitted by UV LED lamps or mercury lamps used for curing. The light emitted by a source is not a single wavelength but a spectrum; however, it has a dominant central wavelength (peak wavelength) where the energy output is strongest.



• Interaction with Photoinitiators:
  Photocurable resins (photosensitive resins) contain a key component called a photoinitiator (PI). A photoinitiator is a special chemical compound capable of absorbing light energy at specific wavelengths. Upon excitation, it decomposes to generate reactive free radicals or cations, thereby initiating the polymerization (crosslinking) reaction of monomers/oligomers in the resin.



• Absorption Matching:
  Different photoinitiators have distinct absorption characteristics, meaning they preferentially absorb certain wavelengths of light. Light sources at 385nm and 405nm are designed to match the optimal absorption wavelengths of specific types of photoinitiators.

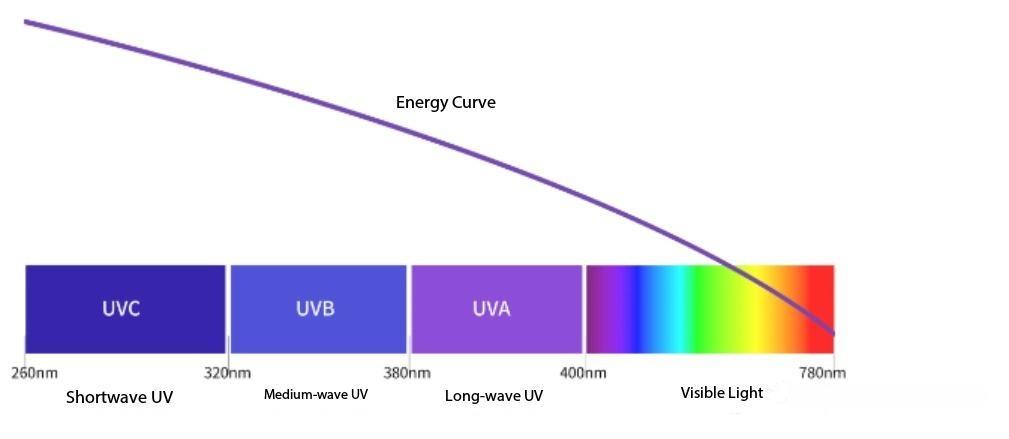

• UVA Band Characteristics:
  UVA light has stronger penetration compared to shorter wavelengths such as UVB and UVC, allowing deeper curing of resin layers. It causes relatively less material damage (e.g., to optical lenses), generates less ozone, and benefits from mature LED technology with longer service life, lower energy consumption, and environmentally friendly operation (mercury-free).





---



★ Difference Analysis

In UV curing printing technology, the light source wavelength is a critical parameter influencing both the printing process and the final output. As two mainstream UV wavelengths, 385nm and 405nm exhibit significant differences across multiple dimensions, directly impacting equipment selection, material compatibility, and print quality.

The primary differences can be summarized as follows:

1. Light Source Characteristics and Energy Output

385nm:
Typically implemented using UV LEDs or laser systems. The photons carry relatively higher energy.

405nm:
Commonly utilizes UV LED light sources. The energy per photon is slightly lower compared to 385nm sources.



---



2. Resin Curing Behavior and Performance

385nm:
Due to higher photon energy, it can activate photoinitiators more rapidly, improving curing efficiency and supporting fine structural reproduction. However, under certain conditions, it may affect curing uniformity.

405nm:
Although the overall curing speed may be slightly slower than 385nm, it often produces more uniform cured layers, and interlayer bonding strength may sometimes be superior.



---



3. Model Detail Resolution

385nm:
Shallower light penetration in resin allows precise control of each cured layer boundary, making it ideal for high-resolution and high-precision models (e.g., micro-features and intricate hollow structures).

405nm:
Deeper penetration may slightly compromise extreme fine-detail control, but enhanced curing depth can improve interlayer adhesion strength.



---



4. Equipment Acquisition and Maintenance Costs

385nm:
Associated light source components (especially lasers or specialized LEDs) are typically more expensive, resulting in higher overall machine costs.

405nm:
Thanks to mature UV LED technology and large-scale adoption, light source costs are lower, making 405nm-based printers more cost-competitive.



---



5. Typical Application Suitability

385nm:
Particularly suitable for applications demanding extremely high dimensional accuracy and surface detail (e.g., precision engineering parts, jewelry casting, dental applications). It is also often regarded as more compatible with transparent or semi-transparent resin materials.

405nm:
Due to its balanced performance and cost-effectiveness, it is widely used in general rapid prototyping, design validation, educational practice, and cost-sensitive scenarios.



---



6. Compatibility with Mainstream Printing Technologies

385nm:
Frequently used in DLP (Digital Light Processing) systems.

405nm:
Highly compatible with LCD (liquid crystal mask) technology. It is currently the mainstream wavelength for most desktop LCD resin printers and offers better optical transmission compatibility with LCD screens.



---



7. Operational Safety Considerations

385nm:
As a shorter UV wavelength, it presents relatively higher potential biological hazards. Stricter protective measures are required (e.g., professional protective eyewear, avoidance of direct skin exposure).

405nm:
Located near the boundary between visible violet light and UV light, it poses relatively lower risk but still requires compliance with standard UV safety practices. Protection requirements are generally less stringent than those for 385nm.



Core Differences Comparison: 385nm vs 405nm

---



⚙️ Selection Recommendations

▲ Choose 385nm if:

• Ultra-high printing precision ≤50μm is required (e.g., jewelry lost-wax casting prototypes)



• Using high-viscosity engineering resins (e.g., ceramic-filled resins)



• The production environment is not sensitive to ozone generation (385nm more readily ionizes air)



▲ Choose 405nm if:

• Printing solid parts thicker than 5mm (e.g., functional prototypes)



• Using pigmented or dyed colored resins



• Budget is limited or quiet operation is preferred (fanless designs are more common)





---



✅ Industry Application References:

▲ Chairside dental restoration: 385nm (curing time as short as 3 seconds)

▲ Education / Maker 3D printing: 405nm (safer and more cost-effective)

▲ Automotive mold manufacturing: Selection depends on resin type — glass-fiber-reinforced resins commonly use 385nm, while standard weather-resistant resins typically use 405nm.
