D50 Particle Size Distribution in Inkjet Printing Inks: Definition, Importance, and Measurement Methods
Introduction
In powder and particle science, D50 is a core parameter used to describe particle size distribution. Its definition, significance, and measurement methods can be summarized as follows.
1. Definition of D50

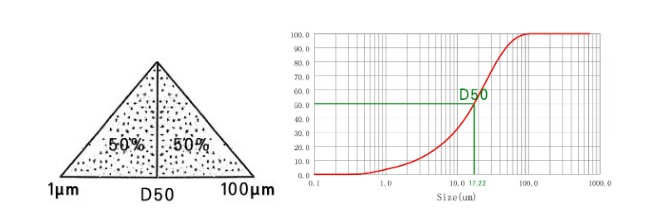

D50 refers to the particle diameter at which the cumulative particle size distribution reaches 50%.
More specifically:
-
Statistical Meaning
When particles are arranged in ascending order of size, D50 represents the median value—50% of the particles are smaller than this diameter, and the remaining 50% are larger. -
Alternative Names and Applications
D50 is also known as the median particle size and is widely used as a representative indicator of average particle size in powders and dispersions.
Example:
If a sample has a D50 of 5 μm, this means that half of the particles have diameters smaller than 5 μm, while the other half are larger than 5 μm.
2. Importance of D50
As a measure of the central tendency of particle size distribution, D50 has a critical impact on material performance and application behavior.
2.1 Performance Optimization
-
Pharmaceutical Industry
D50 directly affects drug dissolution rates and bioavailability. A smaller D50 generally leads to faster dissolution. -
Materials Science
D50 influences sintering behavior and microstructure formation. A well-controlled D50 improves material density and uniformity. -
Coatings and Inks
D50 affects opacity, coating uniformity, sedimentation stability, and jetting performance. Particle size distribution must be tailored to specific application requirements.
2.2 Quality Control
In industrial production, D50 is a key parameter for batch-to-batch consistency, ensuring products meet design specifications and performance standards.
3. Measurement Methods for D50
D50 is measured using specialized analytical instruments. Common methods include:
3.1 Laser Diffraction Particle Size Analysis
-
Principle
Particle size distribution is determined by analyzing laser light scattering patterns. -
Advantages
Fast, accurate, and suitable for most powders and dispersions, particularly in the micrometer range.
3.2 Other Measurement Methods
-
Electron Microscopy (SEM/TEM)
Provides high-resolution imaging and is suitable for nanoscale particles, but is time-consuming and costly. -
Sedimentation Method
Based on particle settling velocity; suitable for coarse particles but requires longer measurement times. -
Dynamic Image Analysis
Allows simultaneous analysis of particle size and shape, though detection of very fine particles is limited.
4. Relationship Between D50, D10, and D90
D50 is often used together with D10 and D90 to provide a comprehensive description of particle size distribution:
-
D10: 10% of particles are smaller than this value, indicating the fine-particle fraction.
-
D90: 90% of particles are smaller than this value, representing the upper size limit of coarse particles.
Together, D10–D50–D90 offer a complete picture of particle distribution and serve as important guides for process optimization.
5. Measurement Standards and Error Control
According to international standards such as ISO 13320:2009, the repeatability error of D50 measurements should be ≤ 3%, while reproducibility must be verified through multiple sampling and testing.
Key considerations during measurement include:
-
Sample Homogeneity
Prevent particle agglomeration, which can distort distribution results. -
Instrument Calibration
Regular calibration is essential to ensure data accuracy and reliability.
Conclusion
D50 is a fundamental parameter in particle size analysis, providing a clear statistical representation of the median particle size.
Its importance across pharmaceuticals, materials science, coatings, and inkjet printing highlights the critical role of particle size control in determining product performance.
For accurate evaluation, D50 should be measured using appropriate techniques and interpreted alongside D10 and D90 to fully understand particle size distribution characteristics.
Visual Perception Factors and Inkjet Printing
1. Visual Perception Factors
Anatomical Overview of the Human Eye
The retina contains two types of photoreceptors:
-
Cones
-
Rods
Cones
-
Responsible for photopic (daylight or bright-light) vision
-
Quantity: approximately 6–7 million
-
Highly sensitive to color
-
Each cone is connected to an individual nerve ending, enabling humans to perceive fine image details and high spatial resolution
Rods
-
Responsible for scotopic (low-light) vision
-
Quantity: approximately 75–150 million
-
Not sensitive to color, but highly sensitive to low light levels
-
Multiple rods share a single nerve ending, resulting in poor detail perception and only general shape recognition
Distribution of Rods and Cones on the Retina
-
Photoreceptor distribution is symmetrical around the fovea
-
Cones are most densely packed in the fovea, which lies at the center of the retina
-
Moving outward from the fovea to about 20° off the visual axis, rod density gradually increases
-
Toward the peripheral edge of the retina, rod density decreases again
-
The fovea itself is a circular depression approximately 1.5 mm in diameter
-
It can be regarded as a 1.5 mm × 1.5 mm sensor array responsible for the highest visual acuity
Image Formation in the Eye
-
The lens at the front of the eye functions similarly to a camera lens
-
The retina acts like photographic film or an image sensor
-
Unlike a camera, the eye achieves correct focus by changing the shape of the lens, not by adjusting its position
Brightness Adaptation and Discrimination
-
ΔIc: the minimum detectable luminance increment (approximately 50% threshold)
The curve demonstrates that:
-
At low illumination levels, brightness discrimination is poor
-
As background illumination increases, discrimination improves significantly
Two curves reflect a key fact:
-
Under low illumination, vision is dominated by rod activity
-
Under high illumination, vision is dominated by cone activity
2. Mach Band Effect
Mach Bands were first described in 1865, referring to the visual system’s tendency to produce undershoot or overshoot near the boundaries between regions of different intensity.
This phenomenon demonstrates that perceived brightness is not a simple function of physical intensity.
Simultaneous Contrast Phenomenon
-
All central squares have the same physical brightness
-
As the background becomes brighter, the central squares appear darker
-
This confirms that perceived brightness depends on surrounding context, not solely on absolute luminance
Visual Illusions
Visual illusions occur when:
-
The eye fills in information that does not exist
-
Or misinterprets the geometric characteristics of objects
Illusions are an inherent property of the human visual system and are still not fully understood.
Relevance to Inkjet Printing
Understanding these visual perception mechanisms is essential in inkjet printing, particularly for:
-
Tone reproduction
-
Edge sharpness control
-
Gradation smoothness
-
Perceived contrast optimization
Print quality is ultimately judged by the human eye—not instruments alone—making visual perception science a critical foundation for high-end inkjet imaging.
