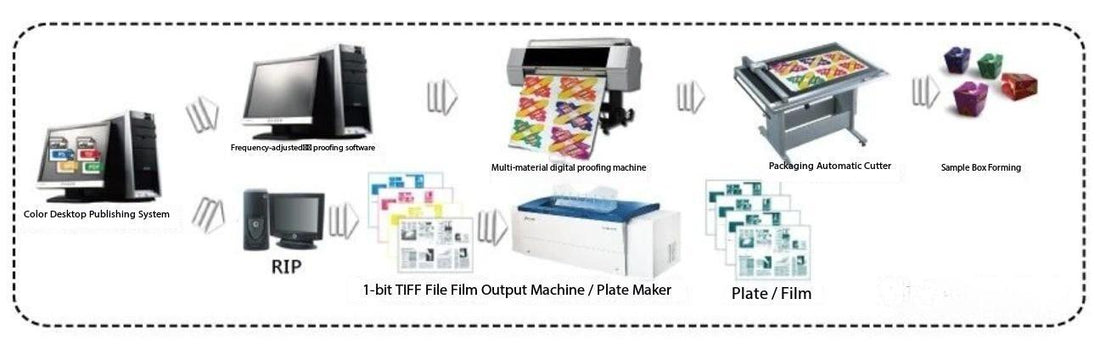

Compared with traditional printing, the digital printing workflow is more flexible and efficient, making it especially suitable for short runs, personalization, on-demand printing, and variable data printing. Its core process can be summarized into the following main stages:



1. Prepress Preparation and File Processing

★ File Reception and Inspection

Receive electronic files provided by the customer (PDF, AI, PSD, INDD, DOCX, etc.). Check whether the files meet printing requirements, including resolution (typically 300 dpi), color mode (CMYK for printing; RGB must be converted), bleed settings (usually 3 mm), font embedding, image links, page size, and other specifications.

★ File Preprocessing

Make necessary adjustments and optimizations to the files:

  1. Color Management
     Apply ICC color profiles to ensure that on-screen display (soft proofing) and final output colors are as accurate and consistent as possible. Perform required color space conversions (RGB → CMYK).

  2. PDF Preflight and Optimization
     Use professional software to detect potential issues (such as low image resolution, missing fonts, spot color handling, etc.), then correct and optimize them to generate print-ready PDF files.

  3. Imposition
     Arrange multiple pages or components on a larger sheet according to final product size and paper specifications to improve material utilization and production efficiency. Digital printing allows highly flexible imposition, even single-sheet imposition.

  4. Trapping
     Handle potential white gaps between adjacent color areas (more critical in traditional printing; often optional or automatically handled in digital printing due to higher precision).

  5. Screening (Halftoning)
     Convert continuous-tone images into halftone dots. Digital printing typically uses FM screening or hybrid screening to reduce moiré patterns associated with conventional AM screening.





2. RIP Processing

★ Core Step

Input the processed page files (usually PDFs) into the Raster Image Processor (RIP).

★ Functions

The RIP is the “brain” of digital printing. It converts vector graphics, text, and images into high-resolution raster bitmap data that the printing device can interpret. During this process, it completes:

  • Final color separation (CMYK)

  • Application of precise color management settings

  • Execution of screening algorithms

  • Processing of variable data (if included)

  • Optimization of data transmission to the print engine

★ Output

Generate bitmap data streams that can be used directly by the printing engine.





3. Printing Process

★ Media Preparation

Load the selected substrate (paper, cardstock, self-adhesive labels, synthetic paper, film, pretreated textiles, etc.) into the printing device. Digital printing has certain requirements for media surface properties (such as static control and coatings).

★ Imaging

  • Electrophotographic / Toner-Based Printing
     A laser forms an electrostatic latent image on the photoconductor drum → charged toner is attracted → toner is transferred onto paper → heat and pressure from the fusing unit permanently bond the toner to the paper surface.
     Representative technologies: HP Indigo (using liquid electrophotographic ink), Xerox iGen, Konica Minolta bizhub PRESS, Canon imagePRESS.

  • Inkjet Printing
     Using drop-on-demand or continuous inkjet technology, microscopic ink droplets are precisely jetted onto the substrate → the ink dries or cures via absorption, evaporation, or UV exposure.
     Representative technologies: Epson SurePress, Canon Colorado, HP PageWide, Durst, as well as many industrial and large-format systems. Inkjet technology is developing rapidly and has a very broad range of applications.

★ Key Features

  • No Printing Plates Required:
     Each print is generated directly from a digital file—this is the fundamental difference from traditional printing.

  • Variable Data Printing:
     Text, images, barcodes, and other elements can be easily customized on every printed piece.

  • High Efficiency for Short Runs:
     Fast setup with relatively fixed per-sheet costs, making it ideal for small quantities.

  • Instant Drying:
     Toner is fused instantly by heat; inkjet inks dry quickly through thermal air, UV curing, or absorption, enabling immediate post-processing.





4. Post-Press Finishing

★ Inline Finishing

Some high-end digital presses integrate inline finishing units, such as:

  • Inline coating (aqueous or UV varnish) and laminating (for protection and gloss)

  • Inline die-cutting and creasing (for labels and packaging)

  • Inline perforating and scoring

★ Offline Finishing

Most post-press operations are completed on standalone equipment:

  • Cutting: Trim printed sheets into single pages or required sizes

  • Folding: For brochures and booklets

  • Binding: Saddle stitching, perfect binding, sewn binding, hardcover binding, spiral binding, wire-O binding, etc.

  • Lamination: Apply plastic films (gloss, matte, soft-touch) for protection and decoration

  • Spot UV: Apply glossy or special UV varnish to selected areas to enhance texture and emphasis

  • Hot Foil Stamping: Transfer metallic or pigmented foil via heat and pressure

  • Embossing / Debossing: Create raised or recessed effects using dies

  • Die Cutting: Cut printed products into specific shapes (e.g., custom cards, packaging boxes)

  • Perforating / Scoring: Facilitate tearing or folding

  • Numbering / Coding: Print serial numbers, barcodes, QR codes, etc.





5. Quality Inspection, Packaging, and Delivery

★ In-Process Sampling

Conduct random inspections during printing and finishing to ensure color consistency, registration accuracy, image clarity, and finishing quality.

★ Final Inspection

Perform a comprehensive check of finished products and remove defective items.

★ Counting and Packaging

Count products according to order requirements and package them appropriately (cartons, shrink wrap, etc.) to protect them during transport.

★ Delivery

Deliver the finished products to the customer.





★ Key Advantages of the Digital Printing Workflow

▲ High flexibility: variable content and rapid job changes
 ▲ Short turnaround time: no plate-making, fast production startup
 ▲ Cost-effective for small runs: low per-sheet cost with no minimum order quantity
 ▲ Personalization: variable data printing is a core competitive advantage
 ▲ On-demand production: reduced inventory risk and waste
 ▲ Wide range of substrates: especially with inkjet technology





★ Important Considerations

▲ File quality is fundamental: Good design and proper prepress preparation are critical.
 ▲ Color management is essential: Professional hardware, software, and standardized workflows are required for color accuracy and consistency.
 ▲ Equipment and consumable compatibility: Different presses have specific requirements for paper, ink, or toner.
 ▲ Post-press compatibility: Digital prints (especially toner-based) require compatible materials and process parameters for finishing operations (such as lamination or coating) to avoid adhesion issues or toner re-melting.


Summary

The digital printing workflow is a highly digitized and automated system in which all stages are closely interconnected, placing high demands on both technology and process management.
 With continuous technological advancement, its application scope and printing quality are still steadily improving.
