Halftone and Continuous Tone Image Technology

Image Classification



Classified by image tones： Continuous-Tone Image and Halftone Image



 Tips:

*Tone: Qualitatively describes the brightness of pixels. Commonly represented by transmission density or reflection density to indicate the level of brightness.

*Image information can be conveyed through different levels of brightness: high tone value means a large brightness for the pixel or group of pixels; low tone value means a small brightness for the pixel or group of pixels.

*Layering: A series of density levels in an image from the brightest to the darkest, representing changes in the depth and shade of the image.



Continuous-Tone Image



Continuous Tone Image Concept



Continuous tone images refer to two-dimensional images where the variation in hue or color transitions smoothly without gradation. The core characteristic lies in the continuous change of density within a unit area of imaging material (such as silver halide grains, pigments, etc.), thereby forming natural and smooth gradients of lightness or darkness or color.

①Continuous tone images usually refer to changes in tone from light to dark or from dark to light on an image, with the intensity being composed of the density of imaging material particles per unit area. For example, the continuous tone of photographic separations is composed of the density of metal silver particles per unit area.

② The continuous tone of various colored drawings is composed of the density of various pigment particles per unit area, where more pigment particles per unit area result in a darker tone, and vice versa for lighter tones. The variations in depth of continuous tone images are seamless.



Principles of Continuous Tone Image Technology



Based on analog signals, in optical systems such as traditional cameras, continuous tone images are captured by lenses that capture a continuous distribution of light intensity and are directly recorded by chemical photosensitive materials.



Continuous Tone Image Features

Stepless change

Continuous tone images have a smooth and seamless transition between light and dark or color variations, without any abrupt jumps. For example, the gradual change in lighting on a person's face in a photograph or the color transitions in natural scenery are all examples of this type.



The density of the imaging material determines the tonal levels:

1. Traditional photography: Grayscale is represented by the density difference of silver particles within a unit area; areas with higher density appear darker, while those with lower density appear lighter.



2. Painting art: The density of pigment particles determines the intensity of colors; for instance, in oil paintings, the dark parts contain more densely packed pigment particles, while the light parts are less dense.



Contrast with halftone images:

Halftone images (such as prints) simulate continuous tone effects by discretely distributing dots of varying sizes or densities. The gradation changes in these images are limited and graded, whereas continuous tone images represent true, seamless transitions.



Continuous Tone Image Application

1. Photography: This includes traditional film photographs and raw images captured by digital cameras, all of which record the light, shadow, and color gradations of real scenes in continuous tones.

2. Artistic Creation: Hand-drawn sketches (such as sketches, watercolor paintings, oil paintings) achieve delicate tonal transitions through the continuous distribution of pigment particles.

3. Artistic Creation: Hand-drawn sketches (such as sketches, watercolor paintings, oil paintings) achieve delicate tonal transitions through the continuous distribution of pigment particles.



Halftone image



Hatching image concept

A halftone image, which varies from light to dark or from faint to rich, is represented by the size of the dots or dot coverage.

This technique is generally used when replicating continuous-tone originals such as photographs, where it divides the image into many points and uses different sizes of these points to represent the depth of color.

During printing, a printer uses a limited number of inks (C, M, Y, K) to print numerous tiny dots of varying sizes and quantities. The colors and shades on the printed piece are represented by these small dots, creating an illusion of many grayscale levels or various colors for the human eye.

When observing the printed piece, areas with larger dot sizes appear darker, known as shadows; areas with smaller dot sizes appear lighter, referred to as highlights. Since the dots are spaced apart spatially and have a discrete distribution, and due to the limitations on the number of lines per inch (lpi), there can be no smooth gradation in the level changes of the image like in continuous-tone images, hence the term 'halftone' refers to this type of image.



Halftone technology



Halftone technology refers to the technique of quantizing a continuous-tone image (such as grayscale and color images) into a binary image or a color image with only a few colors using a small amount of color, while maintaining the visual effect of the quantized image similar to that of the original image at a certain distance.

By exploiting this property, the local average gray level of the halftoned image observed by the human eye approximates the local average gray level value of the original image, thereby creating the overall effect of a continuous tone.



Tips:



The dot is the most basic graphic and text unit. The size variation of equally spaced dots changes the ink area, which in turn expresses the light and dark levels of an image.

 The principle of halftone technology

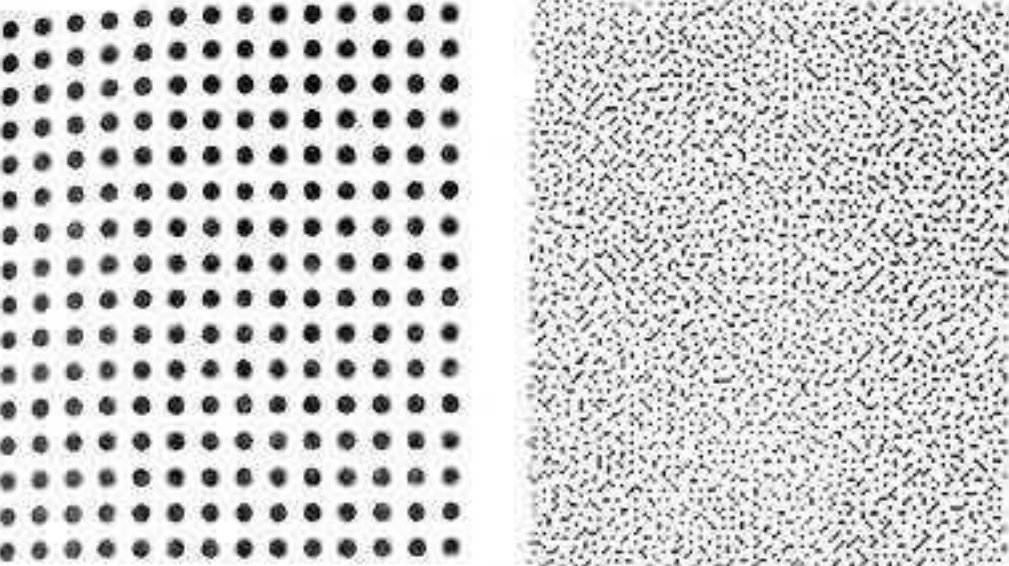

It is a technique for simulating continuous tones, where halftone technology represents image levels by varying the dot area coverage (amplitude modulation screen printing) or the density of dot spatial distribution (frequency modulation screen printing). For example, large dots correspond to dark areas, and small dots correspond to light areas.



Comparison of Halftone and Continuous Tone Differences

 Continuous-Tone Images vs. Halftone Images
