Halftone / Screening Technology

Halftone Technology

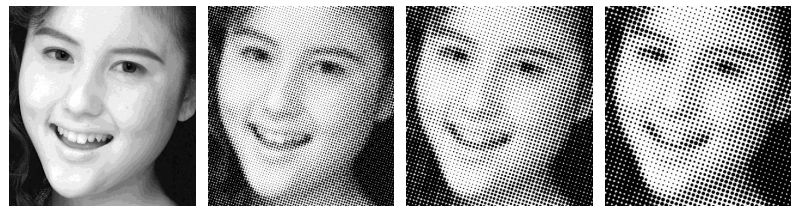

Halftone processing (also known as screening technology) is a core printing technique that simulates continuous-tone images by means of discrete dots. Its fundamental principle is based on the human eye’s spatial color-mixing capability: continuous tonal variations in the original image are converted into dot patterns of varying size, density, or arrangement to reproduce tonal gradation.





Why Screening Is Necessary

  1. If a continuous-tone film without screening is used to expose a printing plate, the photosensitive layer in the midtone areas will not receive sufficient exposure energy. As a result, the photosensitive layer cannot harden properly, and the image cannot be formed.

  2. Letterpress and offset printing cannot reproduce tonal gradation by varying ink film thickness alone; tonal variation must be achieved through halftone dots.





Properties of Halftone Dots

Screen Ruling

Screen ruling refers to the number of halftone dots arranged within a unit width.

  • Unit: LPI (lines per inch)

  • Alternative unit: lines/cm

The screen ruling is defined as the number of center-to-center dot lines per unit length.

Commonly Used Halftone Screen Rulings

Lines per inch (lpi)

60

80

100

120

133

150

175

200

Lines per centimeter (l/cm)

24

32

40

48

54

60

70

80



  • Higher screen ruling → finer tonal detail and smoother gradation

  • Lower screen ruling → coarser tonal reproduction

The number of network cables changes from high to low →

The higher the screen ruling, the greater the number of dots per unit area, resulting in improved tonal reproduction.





Dot Shape

To minimize unpredictable dot gain, maintain color stability, and meet industrial standards, several basic dot shapes are commonly used in printing.



Screen Angle

The screen angle is the angle between the line connecting the centers of adjacent dots and a reference baseline.

When reproducing multicolor images, the original artwork is separated into several color plates—typically the four process colors (Cyan, Magenta, Yellow, and Black). Each separation uses a different screen angle.

If screen angles are improperly selected, interference patterns—commonly known as moiré patterns—will occur.

In traditional reproduction:

  • The three chromatic color plates (C, M, Y) are printed with screen angles spaced approximately 30° apart.

  • For four-color printing, the optimal screen angle for yellow is 15° offset from either magenta or cyan.

Commonly used screen angles include:

  • 0° (90°)

  • 15° (105°)

  • 45° (135°)

  • 75° (165°)



Dot Size

Dot size represents the proportion of ink-covered area within a unit area, typically expressed as a percentage (%).

Halftone dots are classified as:

  • Positive images: black dots on a light background

  • Negative images: transparent dots on a dark background

Factors determining dot size:
 a. Screen ruling
 b. Tonal value of the original image





Dot Coverage Calculation

Methods for Identifying Dot Percentage

1. Visual Estimation Method

Dot Coverage Level

1

2

3

4

5

6

7

8

9

Number of equal-sized dots fitting between adjacent dots

3

2

1.5

1.25

1

1.25

1.5

2

1





2. Densitometer Measurement Method

A densitometer is used to measure the optical density of a halftone area and then convert it into dot percentage.

  • Reflectance: ρ

  • Density:
     D=log⁡(1ρ)D = \log\left(\frac{1}{ρ}\right)D=log(ρ1)

Where:

  • Dt = measured halftone density

  • Ds = measured solid (full-tone) density

Dot percentage calculation:

Dot Percentage=（1-10-Dt）÷（1-10-Ds）





Common Types of Halftone Screening Technologies

Halftone screening is a core technique in printing and digital imaging used to simulate continuous tones.





I. Amplitude Modulation Screening (AM Screening)

Definition and Principle

Amplitude Modulation (AM) screening is a traditional halftoning method that represents tonal variations by changing the dot size while keeping the dot center spacing fixed.

The principle is similar to conventional photographic screen halftoning, but implemented through digital control for more precise dot generation.

Key characteristics include:

  • Regular dot distribution: Dots are arranged in a fixed grid with constant angles and spacing.

  • Tone control by dot size: Darker areas use larger dots, while lighter areas use smaller dots.





Technical Parameters and Structural Characteristics

  1. Screen ruling (Line Screen Frequency)
     The number of halftone dots per unit length (e.g., 150 lines per inch, LPI).
     Higher screen rulings provide finer detail but demand higher equipment and material quality.

  2. Screen angle
     The angle between the dot grid and a reference axis (e.g., 15°, 45°, 75°).
     In CMYK printing, angles are staggered (typically C:15°, M:45°, K:75°, Y:90°) to prevent moiré patterns.

  3. Dot shape
     Common shapes include round, square, and diamond.
     Diamond dots can reduce tonal jumps in midtones.

  4. Dot area percentage (Dot coverage)
     The percentage of inked area within a unit area, ranging from 0% (paper white) to 100% (solid).





Advantages of AM Screening

  1. High stability
     Regular dot arrangement makes AM screening tolerant of traditional printing conditions.

  2. Excellent midtone reproduction
     Smooth tonal transitions in the 40–60% range.

  3. Mature and standardized process
     Over a century of development with well-established industry standards.





Limitations of AM Screening

  1. Loss of highlight and shadow detail
     Fixed dot spacing limits accurate reproduction of extremely small or large dots.

  2. Moiré and rosette patterns
     Misalignment in multi-color printing can produce interference artifacts.

  3. Limited color gamut
     Primarily supports CMYK printing and is unsuitable for extended-gamut (Hi-Fi) color printing.





Typical Applications

  1. Conventional offset printing
     Widely used in books, magazines, and packaging due to process robustness.

  2. Digital printing
     Systems such as Kodak NexPress S3000 employ AM screening with optimized dot compensation to address toner granularity.

  3. Hybrid screening
     Some high-end workflows combine AM screening with FM screening (e.g., FM dots in highlights) to compensate for AM limitations.





II. Frequency Modulation Screening (FM Screening)

Definition and Principle

Frequency Modulation (FM) screening represents tonal variation by keeping dot size constant and changing dot density (frequency).

Dots are arranged randomly rather than periodically.

Key principles include:

  1. Random dot distribution
     Dots typically range from 7–40 μm in diameter and simulate the random grain structure of photographic silver halide emulsions.

  2. No screen angle dependency
     Random placement eliminates moiré and rosette patterns in multi-color printing.

  3. Tone control by dot density
     Dark areas contain higher dot density; highlights contain fewer dots.





Technical Parameters and Structural Characteristics

  1. Dot size
     Determined by output resolution.
     For example, at 2400 dpi, the smallest dot diameter is approximately 10.5 μm (1% tone).

  2. Tonal range
     Capable of reproducing 1%–99% tonal values, preserving highlight and shadow detail better than AM screening.

  3. Resolution advantage
     Smaller dots yield higher image sharpness (e.g., 15 μm dots support high-definition printing).

  4. No line screen requirement
     Unlike AM screening, FM screening does not require specifying a screen ruling.





Advantages of FM Screening

  1. Superior detail reproduction
     Random dot placement avoids periodic artifacts, ideal for skin tones, gradients, and fine textures.

  2. No moiré risk
     Enables Hi-Fi and extended-gamut printing without angle management.

  3. Effective at lower device resolutions
     Maintains high image quality even on 1200 dpi devices.

  4. Stable midtone behavior
     Fixed dot size reduces tone jumps caused by dot gain.





Limitations of FM Screening

  1. Visible graininess
     Sparse highlights and dense shadows may exhibit perceptible grain.

  2. High process sensitivity
     Requires strict control of ink viscosity, paper smoothness, and plate surface quality.

  3. Dot gain challenges
     Small dots are sensitive to pressure and fountain solution, with dot gain reaching up to 50% on uncoated paper.

  4. Plate-making and correction difficulty
     Manual retouching is difficult, and plate exposure must prevent dot loss or clogging.





Typical Applications

  1. High-fidelity printing
     Art reproduction and luxury packaging using extended color sets.

  2. Flexographic printing
     Cigarette packaging and labels, where reduced dot gain improves detail.

  3. Digital printing
     High-resolution inkjet and electrophotographic systems benefit from FM screening’s angle-free output.

  4. Hybrid screening
     FM dots in midtones combined with AM dots in highlights/shadows to balance quality and stability.





III. Hybrid Screening Technology

Definition and Principle

Hybrid screening combines AM and FM screening, selecting the optimal dot structure based on tonal regions to leverage the strengths of both methods.





Zonal Control Strategy

  1. Highlights and shadows
     FM dots (fixed size, random distribution) prevent dot loss or ink filling issues typical of ultra-small AM dots.

  2. Midtones
     AM dots provide uniform coverage and smooth tonal transitions.

  3. Transition zones (5%–10%)
     Algorithms blend AM and FM dots to minimize tonal discontinuities.





Technical Parameters and Structure

  1. AM region parameters

    • Screen ruling: typically ≥300 LPI

    • Requires high-resolution CTP systems (≥4000 dpi) to ensure sufficient gray levels (≥150)

  2. FM region parameters

    • Dot size: ~20 μm in highlights, ~30 μm in shadows

  3. Distribution algorithms

    • Randomized placement with density gradients to match tonal transitions

  4. Transition control

    • Supercell algorithms or dynamic dot removal to smooth AM–FM transitions





Advantages of Hybrid Screening

  1. Eliminates AM screening weaknesses
     FM dots replace fragile microdots in highlights and shadows.

  2. Maintains midtone uniformity
     Avoids graininess common in pure FM screening.

  3. Improved process compatibility
     Works with conventional offset presses and standard inks.

  4. Enhanced visual quality
     Sharp highlights (FM advantage) and smooth midtones (AM advantage), approaching photographic realism.





Limitations

  1. Gray-level constraints
     High screen rulings require ≥4000 dpi CTP resolution to meet ISO gray-level standards.

  2. High process complexity
     Precise control of transition zones is required; sensitive to pressure and paper smoothness.

  3. Cost and market acceptance
     Higher investment and maintenance costs with limited perceived improvement over advanced FM screening.

  4. Grain–uniformity trade-off
     Larger FM dots in dark areas reduce ink filling issues but may increase visible grain.





Typical Applications

  1. High-end packaging printing
     Luxury packaging and cigarette labels requiring metallic highlights and smooth gradients.

  2. Fine art reproduction
     Accurate rendering of brush strokes and textures without moiré.

  3. Digital print quality enhancement
     Used in systems such as Kodak NexPress and Heidelberg Anicolor to compensate for toner non-uniformity.

  4. Hybrid cloud printing workflows
     Combined with CTP and intelligent RIP systems for automated parameter optimization.
