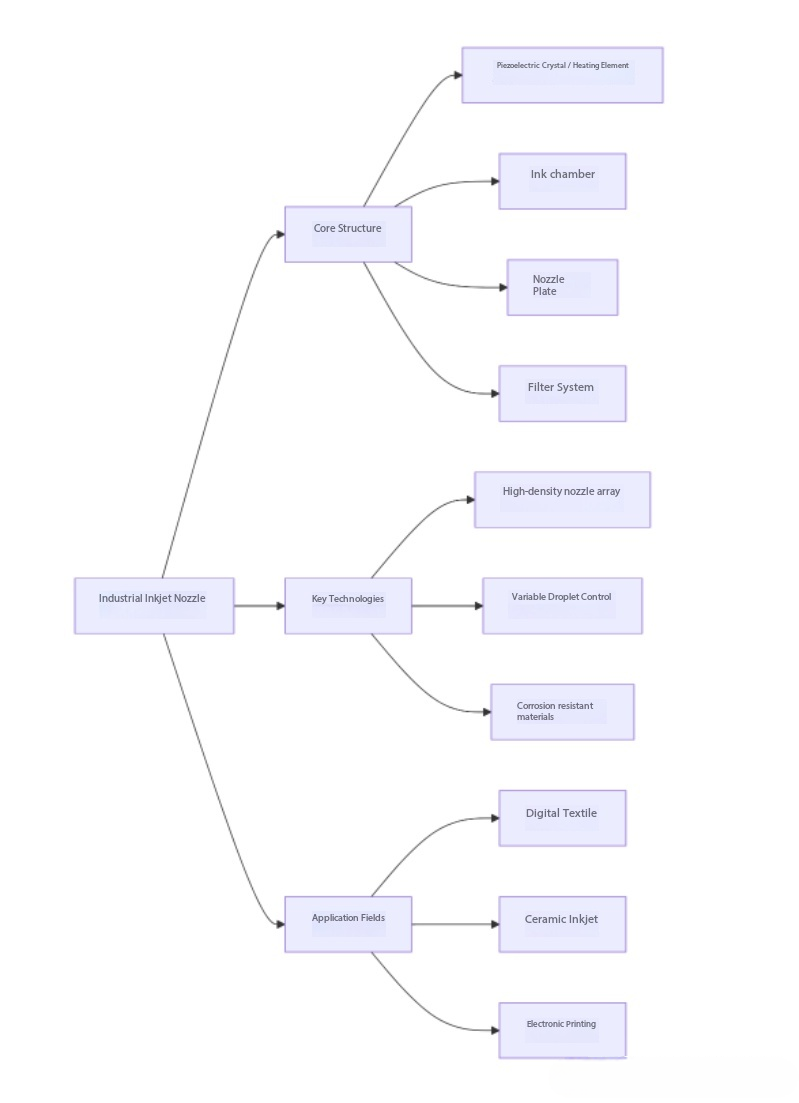

Industrial Inkjet Printhead Technology Analysis and Applications

Inkjet printheads (hereinafter referred to as “printheads”), as the irreplaceable “heart” of digital inkjet equipment, directly determine the stability, output precision, and large-scale production capacity of the entire printing system.

Tracing the development history of inkjet technology, it was initially used mainly in indoor and outdoor advertising graphic output. However, with continuous technological breakthroughs and the iterative upgrading of industrial manufacturing demands, its application landscape has long surpassed the boundaries of traditional printing. It has strongly penetrated diversified industrial scenarios such as:

• High-end ceramic decorative printing



• Full-process digital textile printing



• Smart labels and variable packaging printing



• High-precision PCB electronic circuit printing



• Personalized architectural material surface treatment



• Additive manufacturing (3D printing)



Inkjet technology has become one of the key enabling technologies driving flexible manufacturing in the “Industry 4.0” era.

---



☆ From “Usable” to “Stringent”: Disruptive Industrial Requirements for Printheads

In early applications such as advertising printing or photographic output, printheads typically operated under low-speed, intermittent production modes, where long-term reliability, extreme environmental resistance, and maximum production capacity were not critically demanded.

However, when inkjet technology truly entered large-scale, continuous, and fully automated industrial production fields, market expectations underwent a qualitative leap:

• Extreme reliability: Must operate 24/7 continuously and withstand workshop vibration, temperature and humidity fluctuations, and dust.



• Ultra-high productivity: Must match high-speed production lines; output per unit time becomes a core competitive factor.



• Exceptional consistency: Thousands of nozzles must maintain droplet shape and placement accuracy over millions of firings, eliminating batch color variation.



• Broad compatibility: Must handle complex chemical systems ranging from corrosive ceramic glazes and high-viscosity UV inks to sensitive sublimation dyes.



• Long-term stability: Excellent anti-clogging and anti-crystallization performance to minimize downtime.



Although many products on the market claim “industrial-grade” quality, the term lacks globally unified standards and remains ambiguous. This article deeply analyzes the core definition, key performance dimensions, and differentiated industrial requirements of industrial inkjet printheads, providing authoritative guidance for equipment manufacturers, system integrators, and end users.



---



☆ Key Dimensions for Evaluating Industrial Printhead Performance

Industrial printheads are not simply strengthened commercial products. From design philosophy and material selection to manufacturing processes, they are fundamentally reconstructed around extreme reliability, long service life, ultra-high precision, and adaptability to complex operating conditions.



---



1. Nozzle Architecture and Printing Resolution

Core impact:
The number of nozzles, physical density (DPI), and array design directly determine single-pass print width, physical resolution, and production efficiency. Industrial printheads typically use ultra-high-density nozzle arrays (600dpi to 1200dpi or higher), combined with multi-row staggered layouts to cover larger areas per scan.

Typical configuration:

• 128 to 2048+ precision nozzles per printhead



• Dual-row or multi-row silicon micro-orifice plates



Technical trend:

• 2048 nozzles




• 1200dpi physical resolution




• Modular stitching for ultra-wide formats



Table 1: Evolution Trend of Industrial Printhead Nozzle Configuration



---



2. Jetting Frequency

Definition:
The number of droplets ejected per second per nozzle (kHz), determining production line speed.

Industrial benchmark:
20kHz–80kHz for mainstream industrial heads

100kHz for high-end piezo heads used in textile roll-to-roll and packaging applications.

Constraints:

• Drive circuit response speed



• Ink rheology (viscosity/surface tension)



• Cavity refill efficiency



• Piezo actuator recovery speed



---



3. Precision Droplet Control and Grayscale Performance

Industrial heads support Variable Drop Size (VDS) or Grayscale Printing.

Droplet size range:

• A few picoliters (pL)



• Up to dozens of pL



By controlling drive waveforms, one nozzle can generate droplet volumes ranging from 3pL to 80pL.

Application logic:

• <10pL: photo-level details and smooth gradients



• 30pL: high coverage efficiency (corrugated board, textiles)




Value:
Achieves high speed and high image quality in single-pass mode.



---



4. Ink Compatibility

Industrial inks contain:

• Strong solvents



• Abrasive particles



• High solid content



Critical materials:

• Nickel alloy, polyimide, monocrystalline silicon nozzle plates



• DLC (diamond-like carbon) coatings



• Chemical-resistant sealing materials



Technology differences:

• Thermal inkjet: mainly water-based



• Piezo (especially Thin Film Piezo, TFP): compatible with water-based, solvent, UV, oil-based, ceramic, sublimation, and food-grade inks



Table 2: Industrial Printhead Ink Compatibility Matrix



---



5. Lifetime and Stability

Industrial requirements:

• Tens of billions to hundreds of billions of firings



• Anti-clogging and anti-drying design



• Temperature rise control



Intelligent features:

• Piezo self-oscillation cleaning



• Negative pressure regulation



• Real-time nozzle monitoring



• Automatic compensation



• Efficient circulation filtration



Design life: hundreds of billions of firings.



---



6. Jetting Accuracy

Core parameter:
Droplet placement accuracy ≤ ±5μm

Critical for:

• Electronic printing



• Optical films



• PCB solder mask printing



• Anti-counterfeit micro codes



Achieved through:

• MEMS manufacturing



• Optimized flow channel design



• Digital waveform suppression of satellite droplets





---



☆ Scenario-Based Applications and Selection Logic

▲ Ceramic Digital Printing

• High corrosion resistance



• Large droplet capability



• High-viscosity ink support



▲ High-Speed Digital Textile Printing

• Ultra-high frequency



• Multi-grayscale



• Broad dye compatibility



• High-temperature tolerance



▲ Label and Variable Packaging

• Media adaptability (film/cardboard)



• High resolution



• UV curing advantages



▲ Electronic Printing (PCB/Photovoltaic)

• ±3μm extreme precision



• Conductive silver paste compatibility



• Cleanroom-grade requirements



▲ Additive Manufacturing (3D Printing)

• Binder jetting



• Direct material writing



• Large droplet control



• Special material compatibility





---



Industrial inkjet printheads have evolved from simple imaging tools into core execution units of intelligent manufacturing systems.

Understanding their deep technological structure and scenario-based requirements is crucial for equipment manufacturers to enhance competitiveness and for users to maximize return on investment.

With continuous technological innovation and decreasing costs, the era of “full-scenario, intelligent, ultra-precision” industrial inkjet is accelerating, reshaping manufacturing paradigms from factory workshops to end-consumer products.
