The Impact of Ink Droplets on UV Inkjet Printing Quality

The Impact of Ink Droplets on UV Inkjet Printing Quality

Table of content.

Ink droplets are one of the core factors affecting UV inkjet printing quality. Their size, positioning accuracy, consistency, and coverage collectively determine the final output’s clarity, color performance, and image details.

1. Ink Droplet Size

  • Small droplets:
     Beneficial for producing smooth color transitions and sharp edges in text and image details.

  • Large droplets:
     Provide higher color density and coverage, making colors appear richer and more opaque.

  • Combination of small and large droplets (grayscale printing):
     Achieves a balance between fine detail and color saturation.





2. Ink Droplet Positioning Accuracy

  • Inaccurate positioning can cause jagged edges, broken lines, or white spots in solid areas of the printed image.

  • Ensuring each droplet lands precisely at its intended location guarantees clear and sharp image contours.





3. Ink Droplet Consistency

  • Unstable droplet volume may cause uneven color density across the same image, resulting in visible defects.

  • Ensuring uniform droplet size helps achieve consistent and even color density.





4. Ink Droplet Coverage

  • Insufficient coverage:
     The substrate color may show through, resulting in uneven image appearance.

  • Excessive ink accumulation:
     Leads to ink waste, blurred details, and even potential light transmission issues.

  • Optimal coverage:
     Ink droplets should fully cover the substrate surface, producing uniform, rich, and efficient printing results.





5. 💡 Other Key Factors for Optimizing Ink Droplet Performance

To achieve the best droplet performance, attention should also be given to the following closely related aspects:

① Substrate Characteristics

Different surfaces significantly affect droplet spreading.

For example:

  • On smooth, high-density materials (such as vehicle wraps), ink droplet spreading is minimal.

  • On porous materials like fabric, droplets spread more easily.

Therefore, it is necessary to adjust ink volume or select the appropriate printing curve according to the substrate properties.





② Printhead Technology

Printhead performance directly determines ink droplet quality.

When selecting a printhead, a balance must be considered between droplet precision and printhead lifespan.

For example:

  • Epson printheads produce very small droplets but generally have a relatively shorter lifespan.

  • Industrial printheads such as Ricoh and Konica provide good precision while offering greater durability.

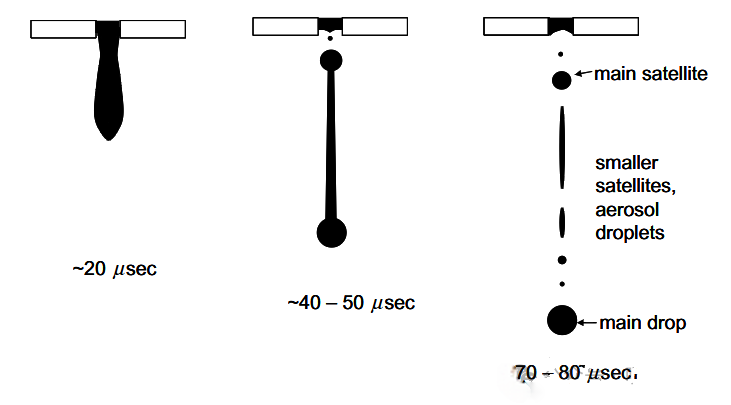

③ Preventing the “Ink Mist” (Overspray) Phenomenon

“Ink mist” refers to droplets failing to land at their intended position, resulting in blurred images or ghosting effects.

The main causes include:

  • Excessive distance between the printhead and the substrate

  • Environmental static interference

  • Printhead aging or damage

  • Improper waveform settings

Maintaining a printhead-to-substrate distance of 1–2 mm, controlling environmental humidity, and ensuring proper equipment grounding to eliminate static electricity are all critical.





④ Image Curve Settings

Even if the original image on the computer is perfect, improper UV printer color curve settings (ICC profiles) can result in dull or inaccurate printed colors.

A properly calibrated curve ensures that ink is applied in the correct proportions to accurately reproduce colors.





Conclusion

To achieve the best printing results, it is essential to understand ink droplet characteristics and maintain proper balance:

  • Use variable droplet sizes (grayscale printing) to balance detail and color saturation.

  • Adjust ink droplet coverage according to the substrate material.

  • Ensure accurate droplet placement by precisely controlling printhead height and minimizing static interference.

Only through these optimizations can high-quality, stable UV printing output be achieved.
