Three Core Technology Routes of Industrial Inkjet Printheads

In the fields of industrial manufacturing and digital printing, inkjet technology has evolved into three mature and distinctly differentiated core technology routes: Thermal Inkjet (TIJ), Piezoelectric Inkjet (PIJ), and Continuous Inkjet (CIJ). Their differences in physical principles, system architecture, ink compatibility, and application scenarios together form the technological foundation of modern industrial inkjet applications.



---



☆ Thermal Inkjet Technology (TIJ)

The core of thermal inkjet technology lies in the instantaneous energy burst of a micro-heating resistor. When a current pulse passes through the micro-resistor inside the nozzle chamber, the surrounding ink is instantly heated to above 300°C, undergoing rapid phase transition to generate a vapor bubble. The pressure wave produced by the rapid expansion of the bubble propels a precisely metered ink droplet out of the nozzle at high speed. The bubble then collapses, creating negative pressure that draws fresh ink into the chamber, completing one ejection cycle.

▲ Core Advantages:

• Cost-effectiveness and scalability: Mature semiconductor fabrication processes support large-scale manufacturing, offering significant single-head cost advantages.



• Compact integration capability: Highly integrated printhead modules are suitable for portable devices and space-constrained applications.



• Instant response characteristics: Millisecond-level start-up speed meets the cycle time requirements of high-speed inline coding.



▲ Technical Limitations:

• Narrow ink chemistry window: Compatible only with low-viscosity water-based formulations; solvent and UV inks are generally unsuitable.



• Thermo-mechanical fatigue effects: Accumulated thermal stress accelerates aging of nozzle chamber materials.



• Continuous operation bottleneck: Prone to overheating during long-term operation, requiring intermittent cooling that reduces production efficiency.



▲ Typical Industrial Applications:

Dynamic coding on food packaging, pharmaceutical traceability codes, logistics label printing, retail price tag systems, and other light industrial scenarios.

☆ Working principle of thermal foam nozzle

---



☆ Piezoelectric Inkjet Technology (PIJ)

Piezoelectric inkjet technology converts electrical energy into mechanical energy via the inverse piezoelectric effect of piezoelectric crystals. When a control voltage is applied to the piezoelectric ceramic element inside the ink chamber, it undergoes precise micro-deformation (contraction or bending), changing the chamber volume and generating a pressure wave that ejects ink droplets in a non-contact manner. This physical actuation mechanism eliminates thermal limitations.

▲ Core Technical Advantages:

• Broad ink compatibility: Supports water-based, solvent, UV, dye-sublimation, ceramic glaze, and other high-viscosity, complex ink systems.



• Grayscale and drop modulation capability: Enables multi-level droplet volume control (picoliter scale) and grayscale printing.



• Long-life industrial design: Non-thermal structure supports 24/7 uninterrupted production line operation.



• Waveform programmability: Optimized drive waveforms refine droplet shape and flight trajectory.



▲ Application Challenges:

• High manufacturing cost: Precision piezo components and microfabrication processes increase per-head cost.



• System integration complexity: Requires high-precision drive electronics and fluid control systems.



• Response speed limitation: Mechanical deformation hysteresis is slightly slower compared to thermal bubble technology.



▲ High-End Application Fields:

Digital textile printing machines, customized ceramic glaze decoration, high-resolution label printing, functional ink deposition for electronic PCBs, and multi-material 3D printing.

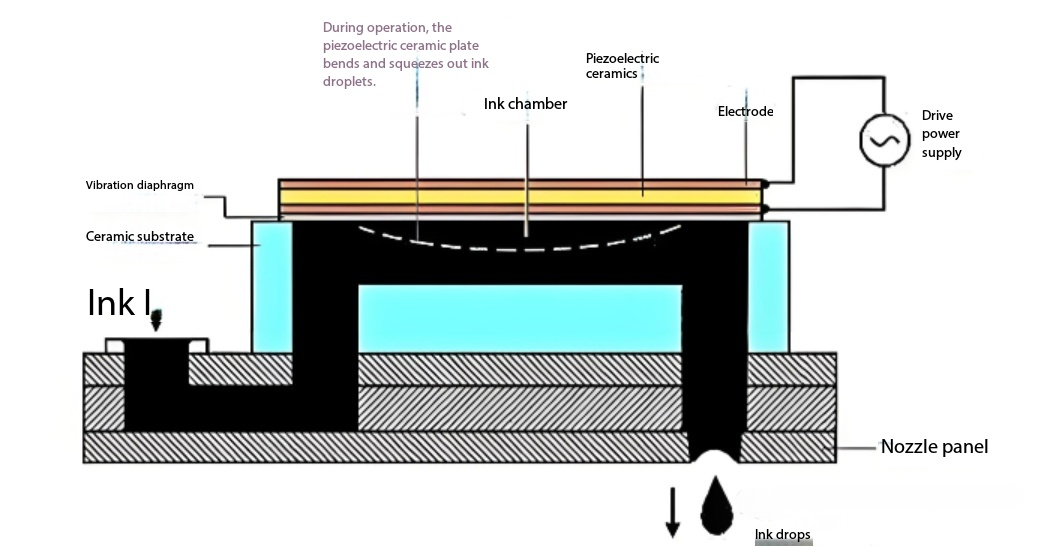

☆ Working principle of piezoelectric nozzles

---



☆ Continuous Inkjet Technology (CIJ)

As the pioneer in industrial marking applications, CIJ utilizes a constant ink stream combined with charge deflection control. A high-pressure pump drives ink to form a stable jet stream. A piezoelectric crystal applies high-frequency vibration to break the stream into uniform droplets. Selected droplets are charged via a charging electrode and deflected by a high-voltage electric field to reach the substrate, while unused droplets are recirculated through a recovery system.

▲ Irreplaceable Advantages:

• Ultra-high-speed printing capability: No start-stop motion, compatible with production lines exceeding 600 m/min.



• Adaptability to non-absorbent substrates: Volatile solvent inks enable instant drying on metal, glass, and plastic surfaces.



• Industrial-grade stability: Closed-loop ink system ensures continuous 24/7 operation.



• Micron-level droplet precision: Minimum droplet diameter can reach approximately 15 microns.



▲ Technical Constraints:

• Resolution limitations: Physical deflection accuracy typically limits resolution to ≤600 dpi.



• System maintenance complexity: Requires solvent replenishment, viscosity control, waste ink recovery subsystems, etc.



• Volatile solvent management: Special safety measures are necessary to handle organic solvent vapors.



▲ Classic Application Scenarios:

Batch coding on beverage cans, regulatory codes on pharmaceutical blister packaging, marking on SMT electronic components, battery casing identification, cosmetic tube end coding, and other high-speed production line environments.



---



Industrial inkjet printhead technologies, through these three major technical routes, collectively support the diverse and evolving demands of modern manufacturing, from lightweight packaging identification to high-precision electronic and functional material deposition.

☆ Continuous Inkjet Working Principle

▲ Comparison Matrix of Technical Routes

Technology Route Comparison Matrix
